H3 Winch mount with pics/measurements

[RickStang]

Hi guys!

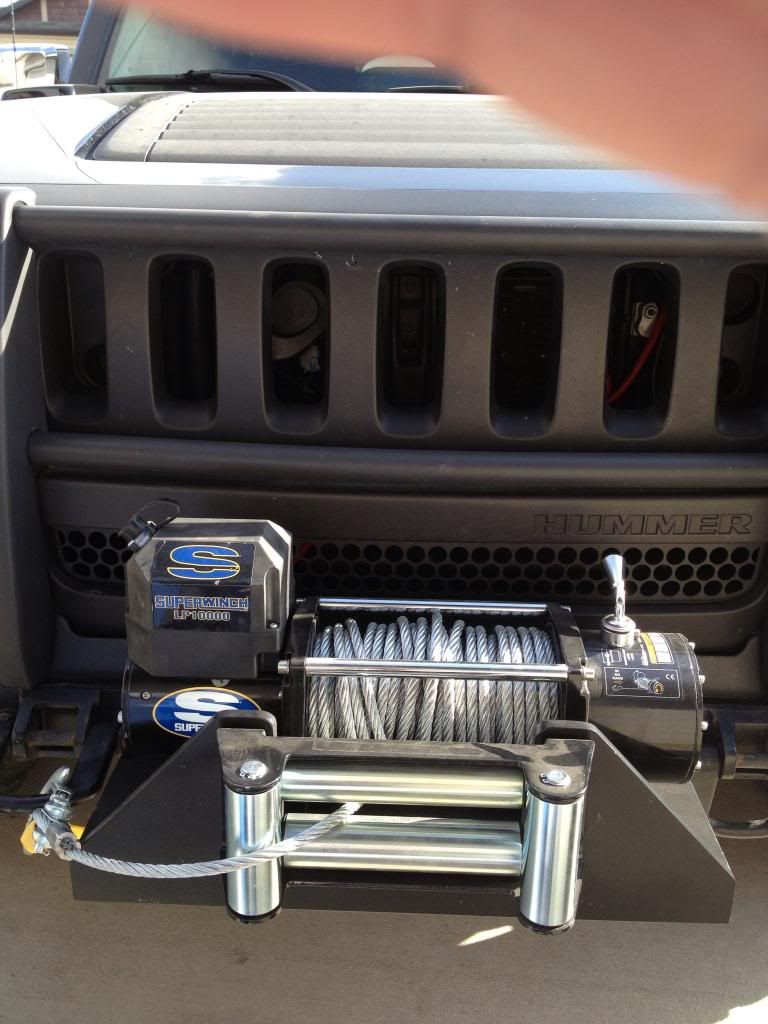

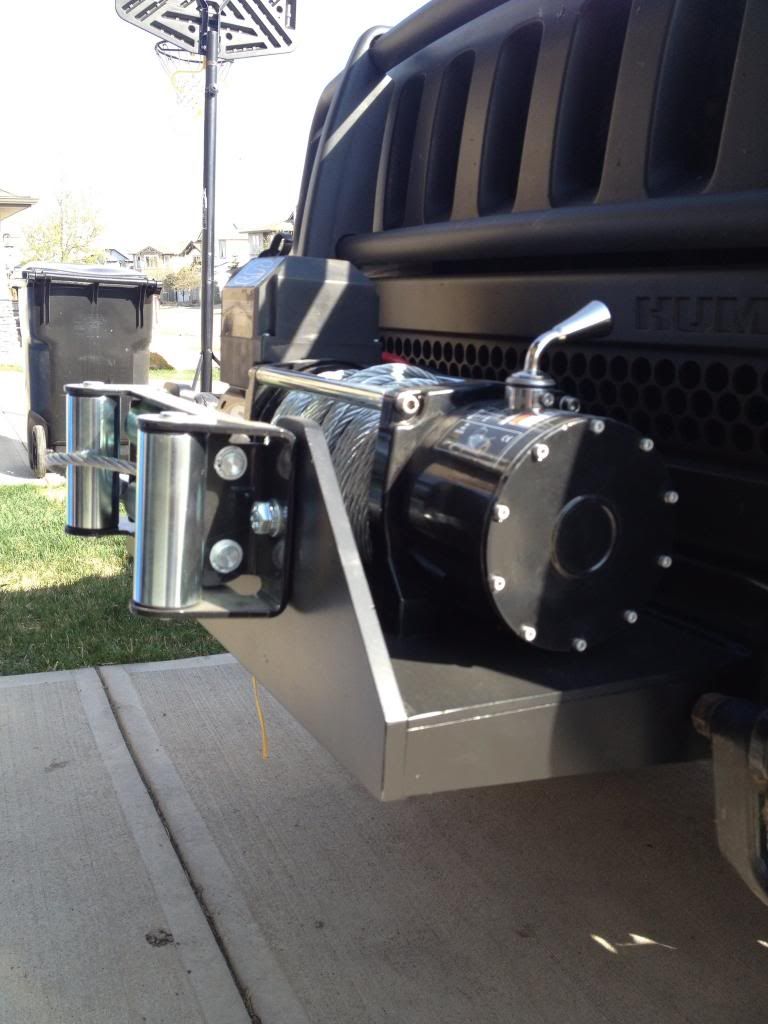

Thought I'd share my winch mount with you guys

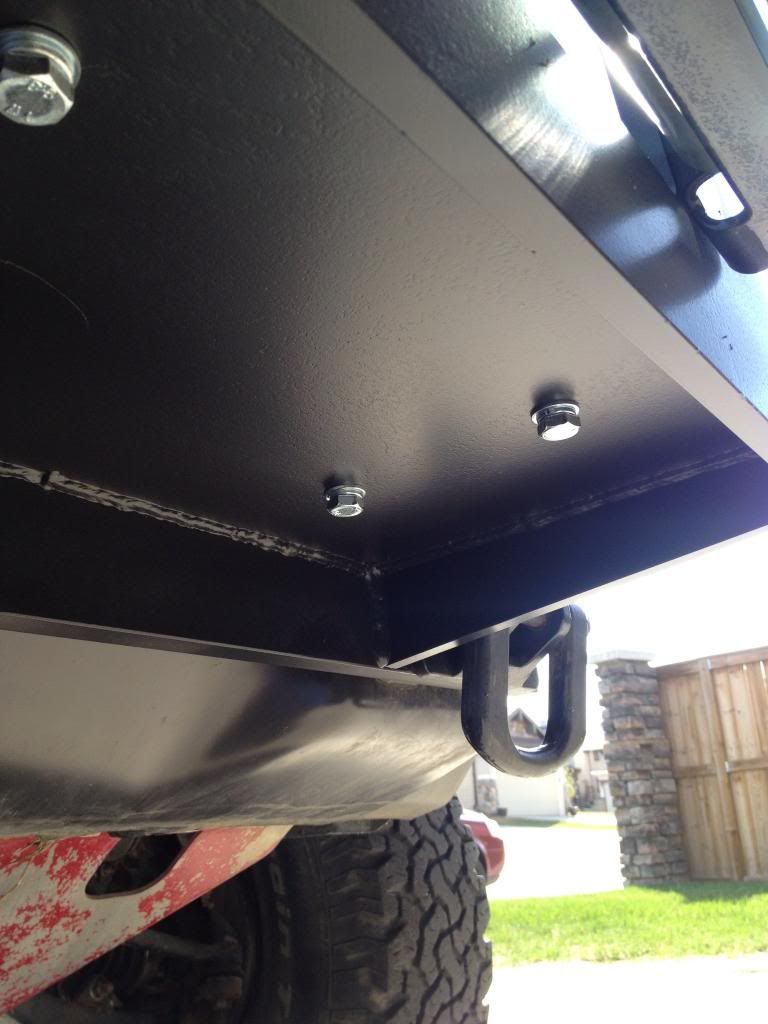

The base plate that bolts onto the D-rings is 36 1/2" x 3 1/8"
The plate on which the winch sits (welded to the base plate) is 22" x 10"
The plate the fairlead is bolted to is 22" wide x 7" tall
everything is 1/2" thick

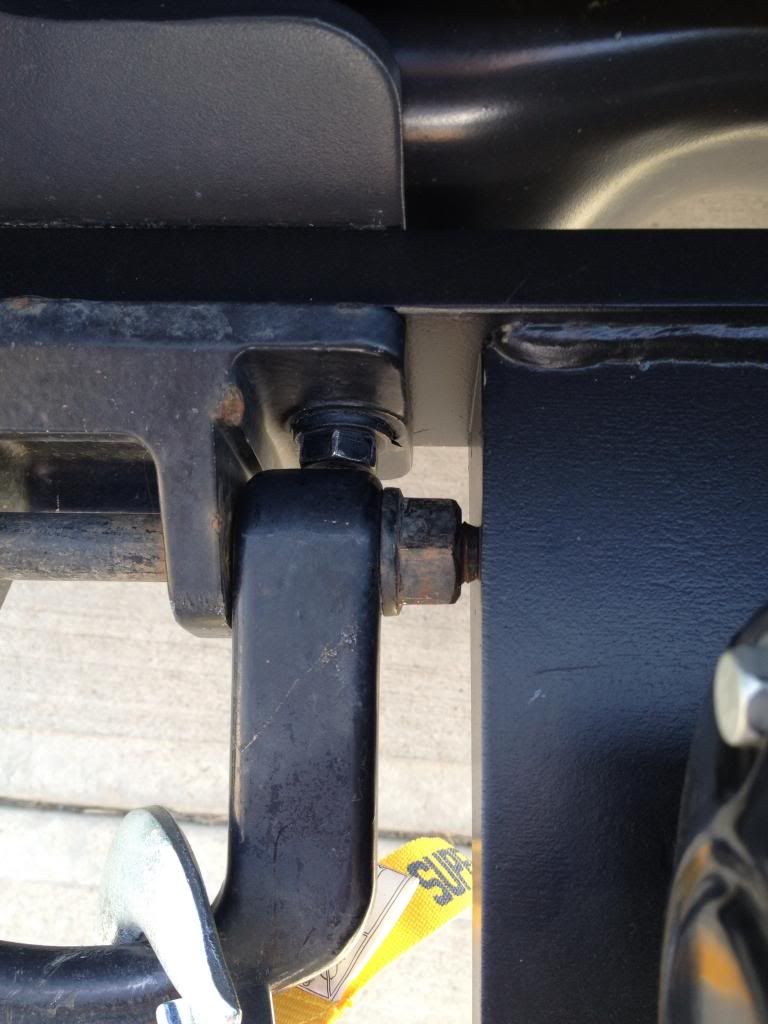

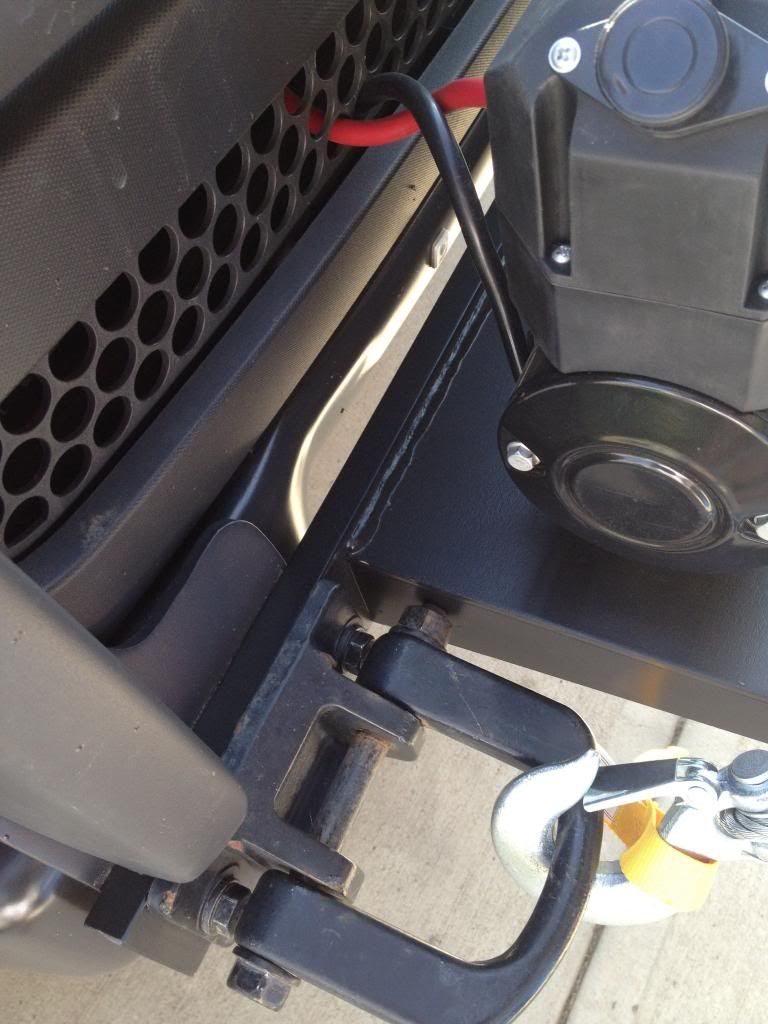

what I noticed is the original bolts for the D-rings rub against the mount, so ill be grinding them down a little.

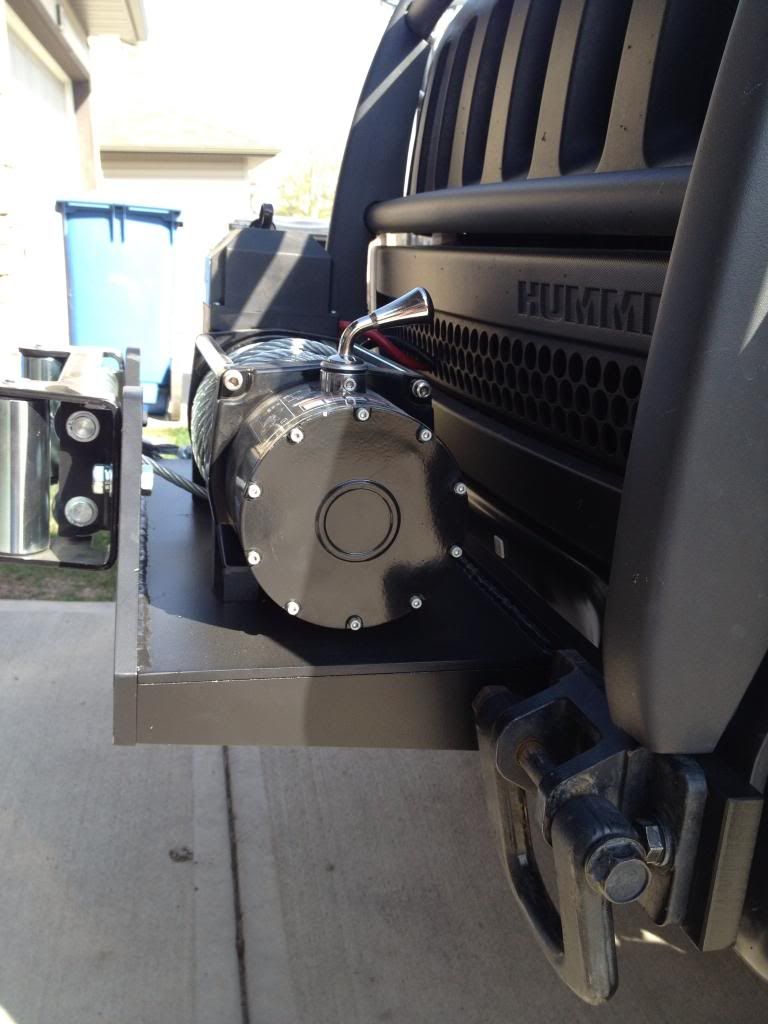

Also since it is mounted inline with the D-rings, the approach angle has suffered, ill have it tested out tomorrow and update here.



[Bigunit]

Very nice job! :thumbup:

Sent from my DROID RAZR using Tapataint



[chad]

thanks a lot i want to build one just like it soon, thanks again for posting that with such good pics too!



[rsc]

Looks good!



[3Hummers]

Wow. That looks stout.



[Jred8383]

how much did it cost?



[Schwarttzy]

awesome



[RickStang]

thanks guys. I paid $100 plus a case of beer!
I have company over for the weekend so I actually wont be able to go wheeling this week, but I will very soon and Ill update back here when I get to use the winch!
