Vdawg’s H3 build

[Vdawg1115]

Daystar air bag cradle so the bags don’t limit my down travel



[Vdawg1115]

Air bag spacer. 2”



[Vdawg1115]

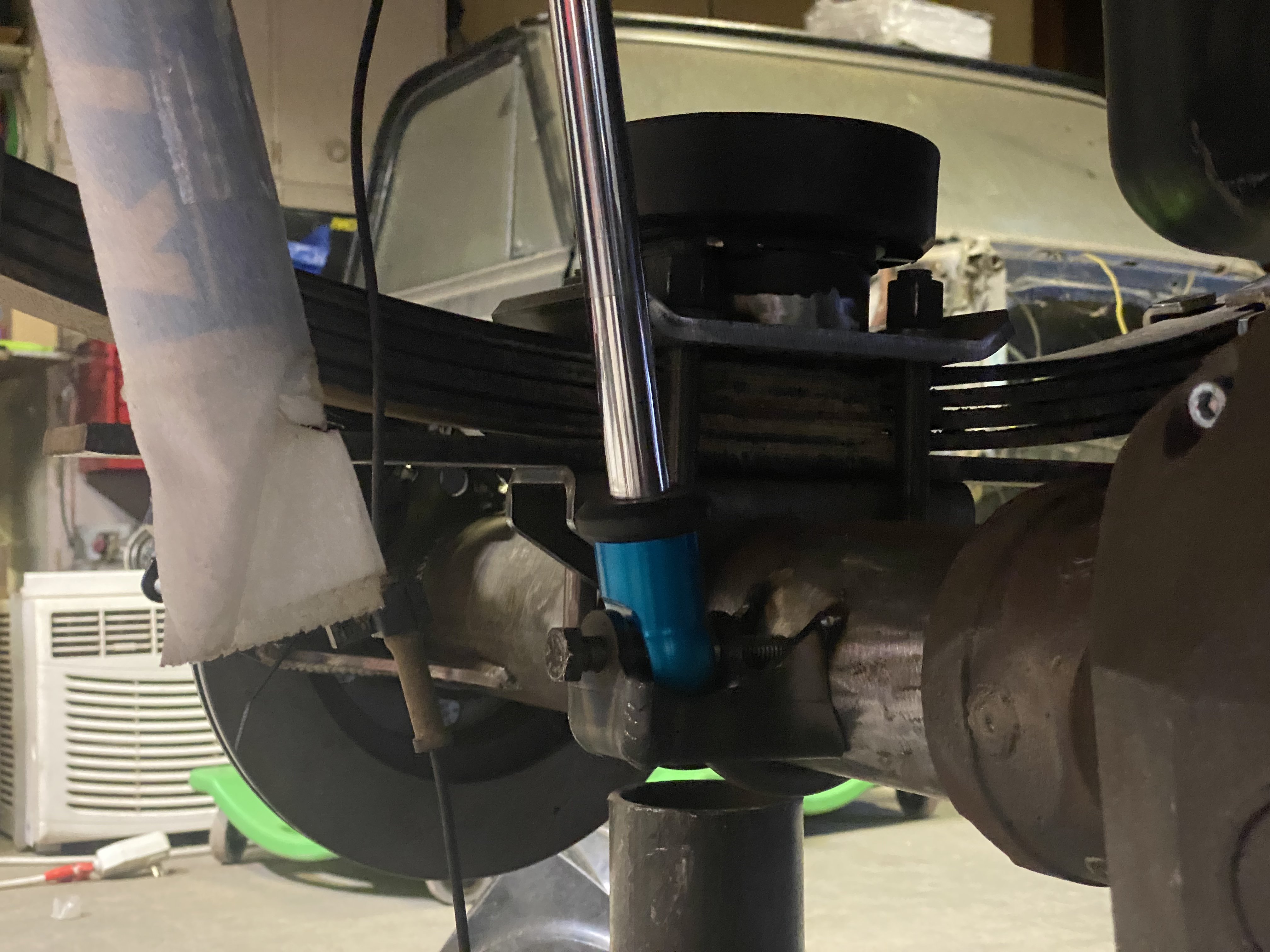

This the rear lower shock mount we started with, but we’ve since switched to a similar one that mounts lower to get more travel out of the shock



[Vdawg1115]

FJ80 steering box from redhead steering



[Vdawg1115]

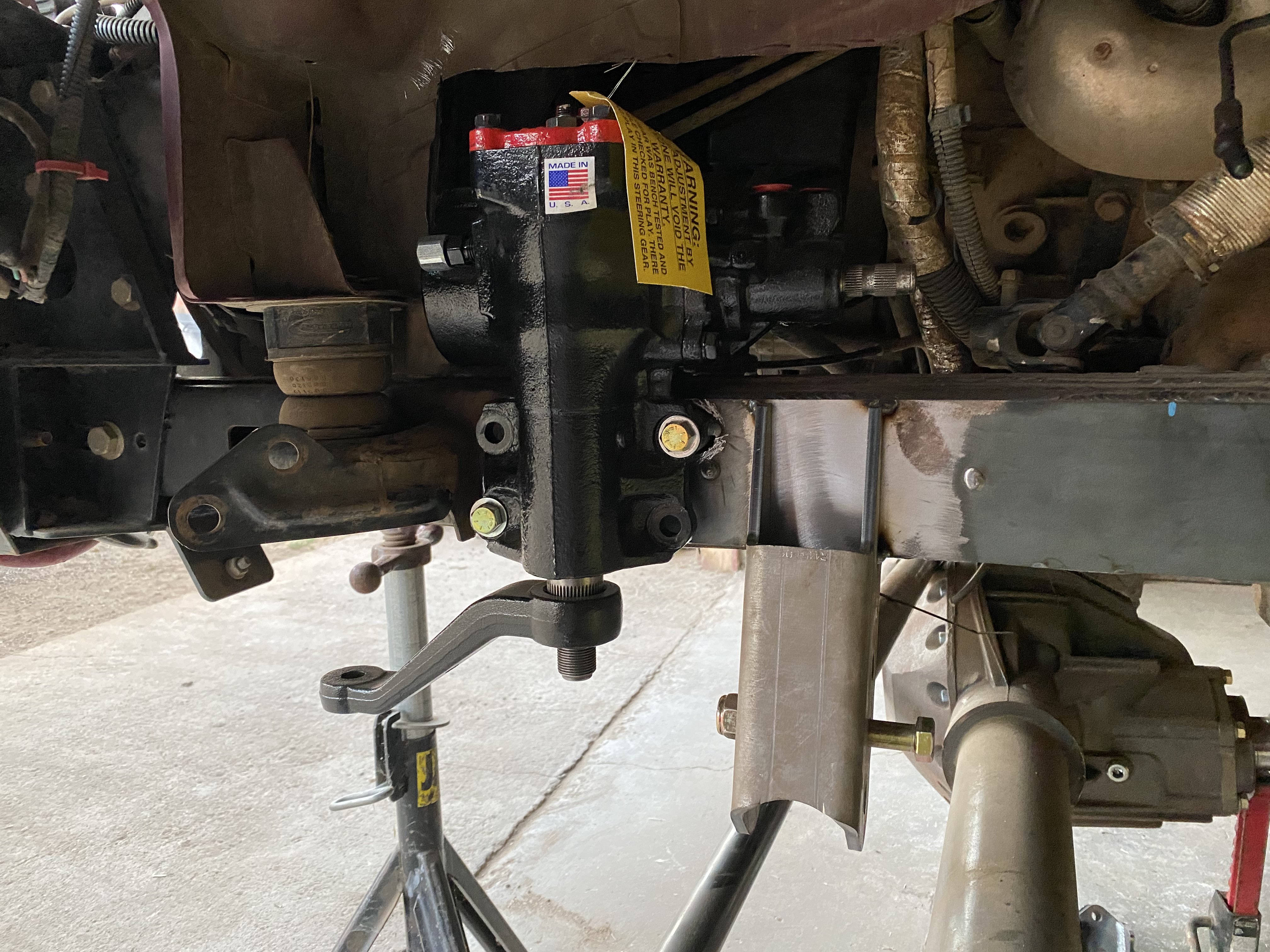

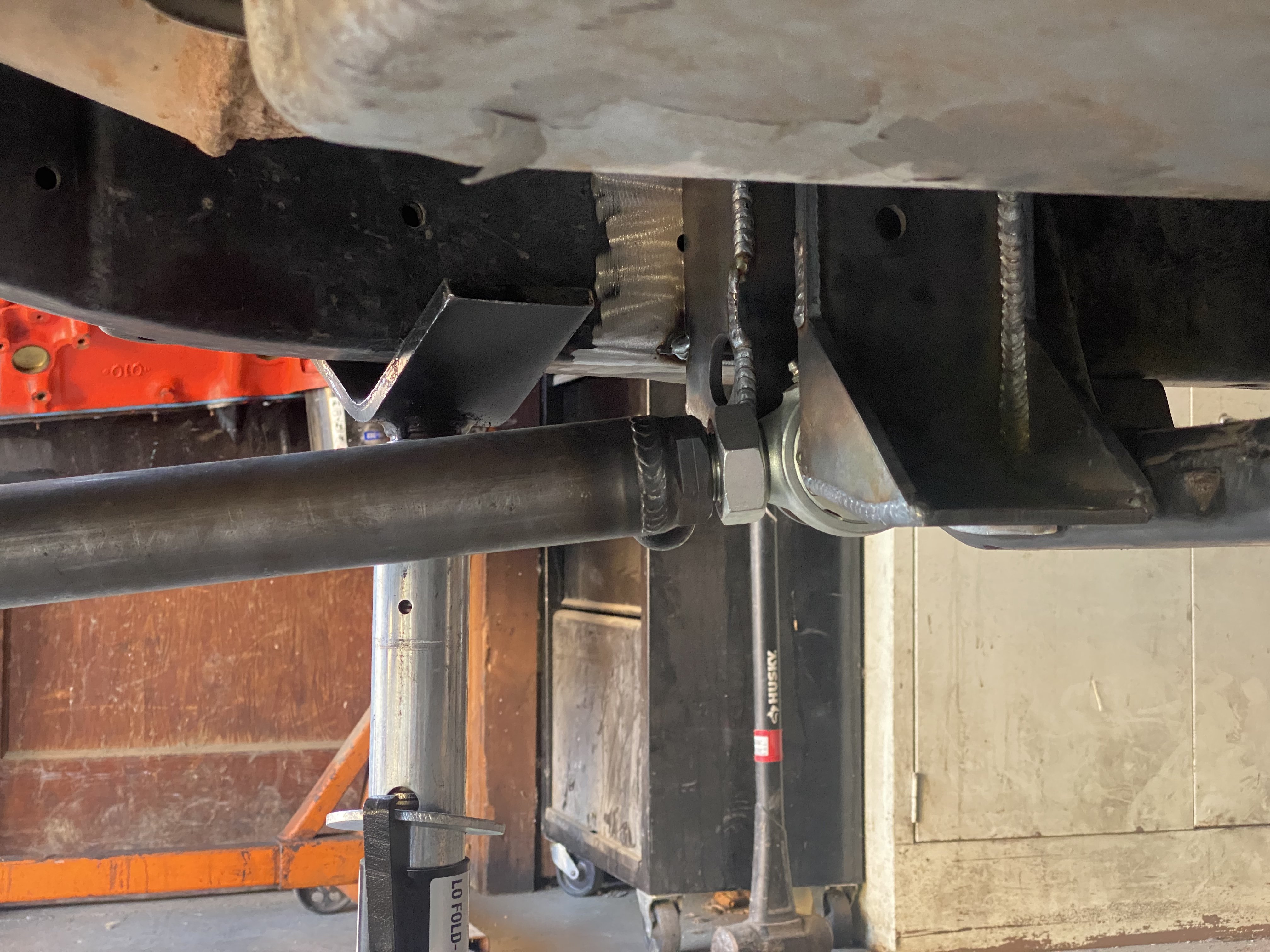

We also got the outside frame rail trackbar mount on



[Vdawg1115]

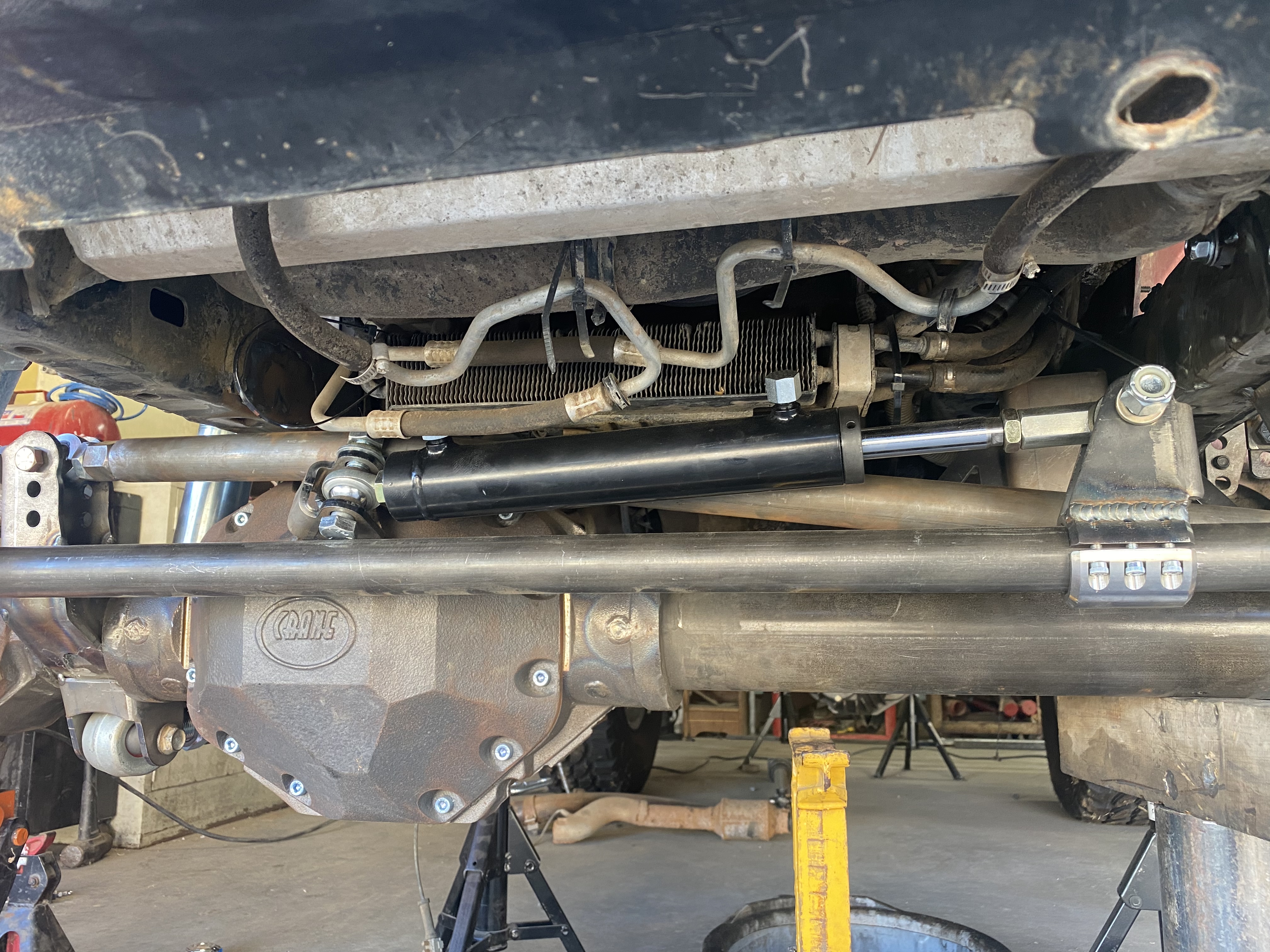

Clamp for the ram assist



[Vdawg1115]

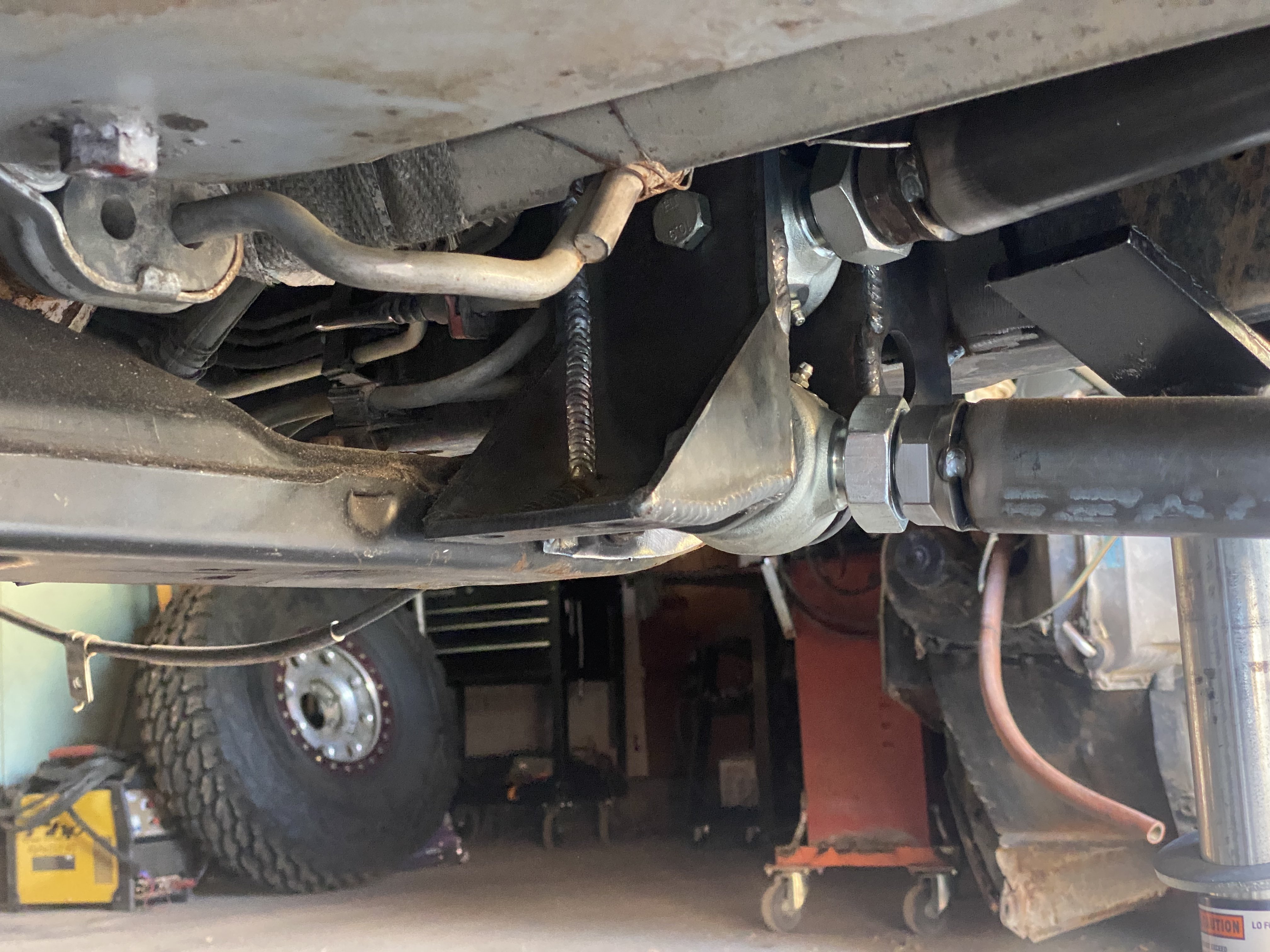

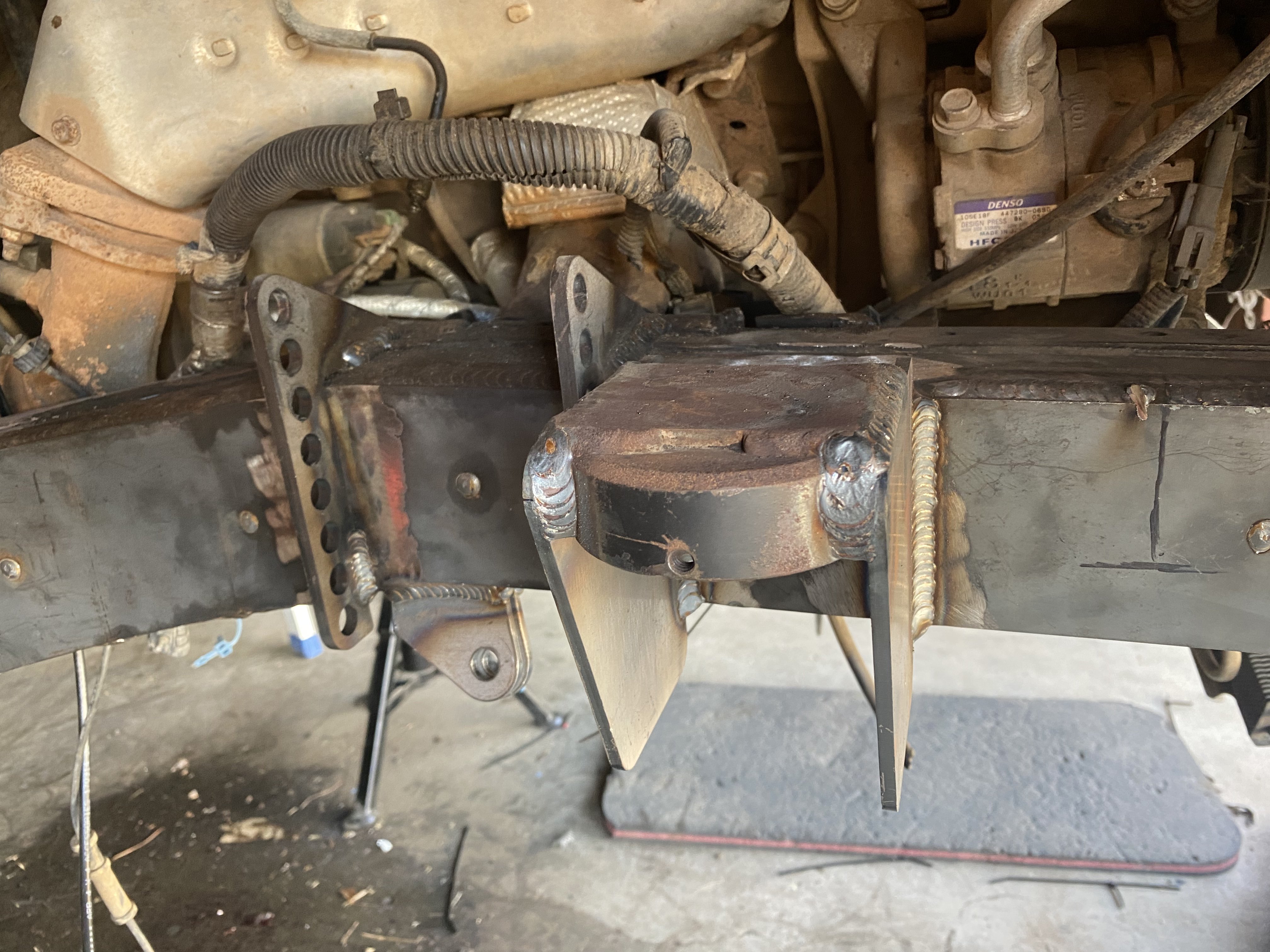

We’re doing a long arm suspension, here’s the passenger side lower link mount



[Vdawg1115]

Drivers side upper link mounts from Shaffer’s Offroad



[Vdawg1115]

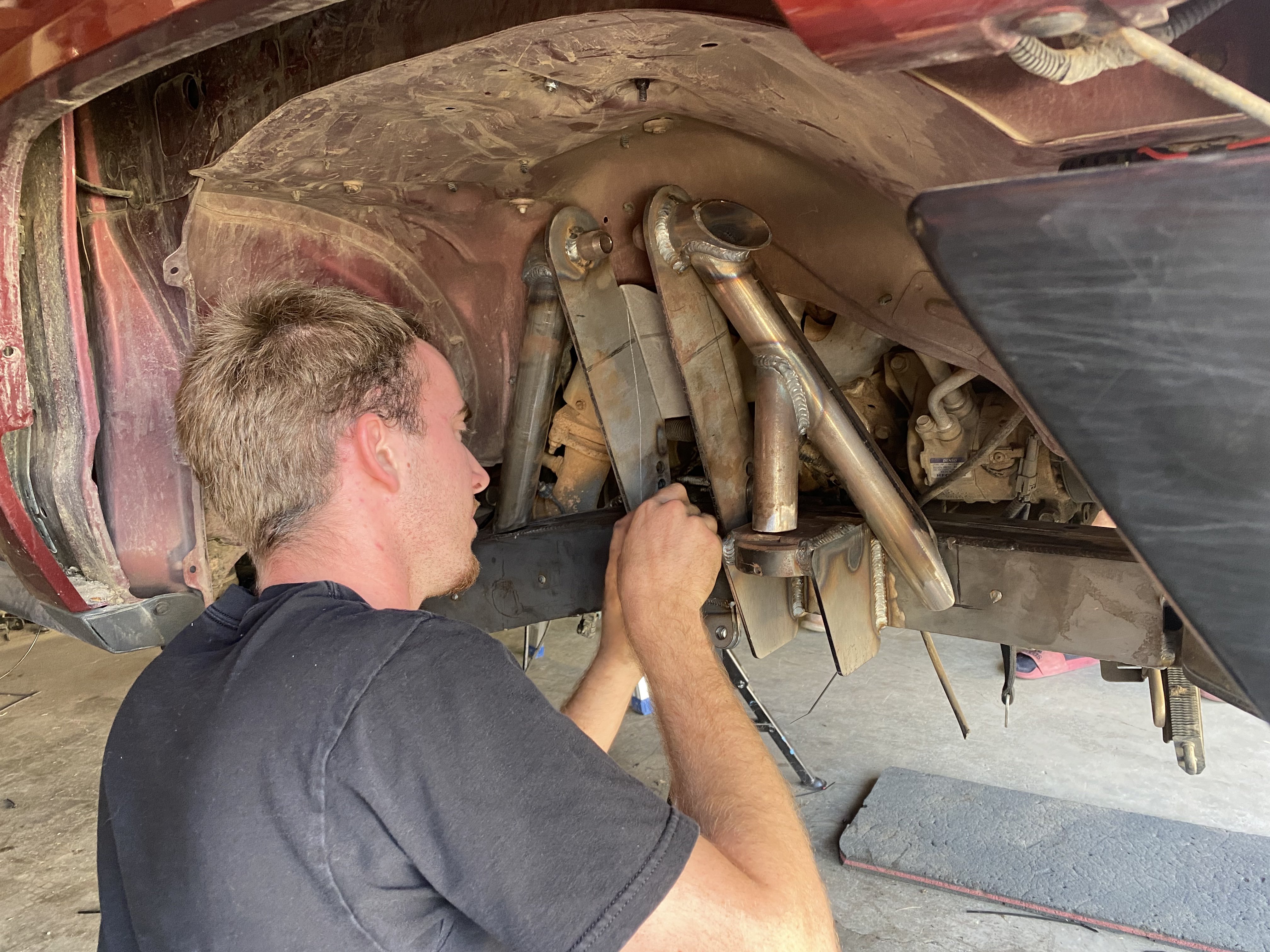

Passenger side upper link mount. These mounts from Shaffer’s Offroad tuck them inside the frame



[Vdawg1115]

Another view of the driver’s side



[Vdawg1115]



[Vdawg1115]

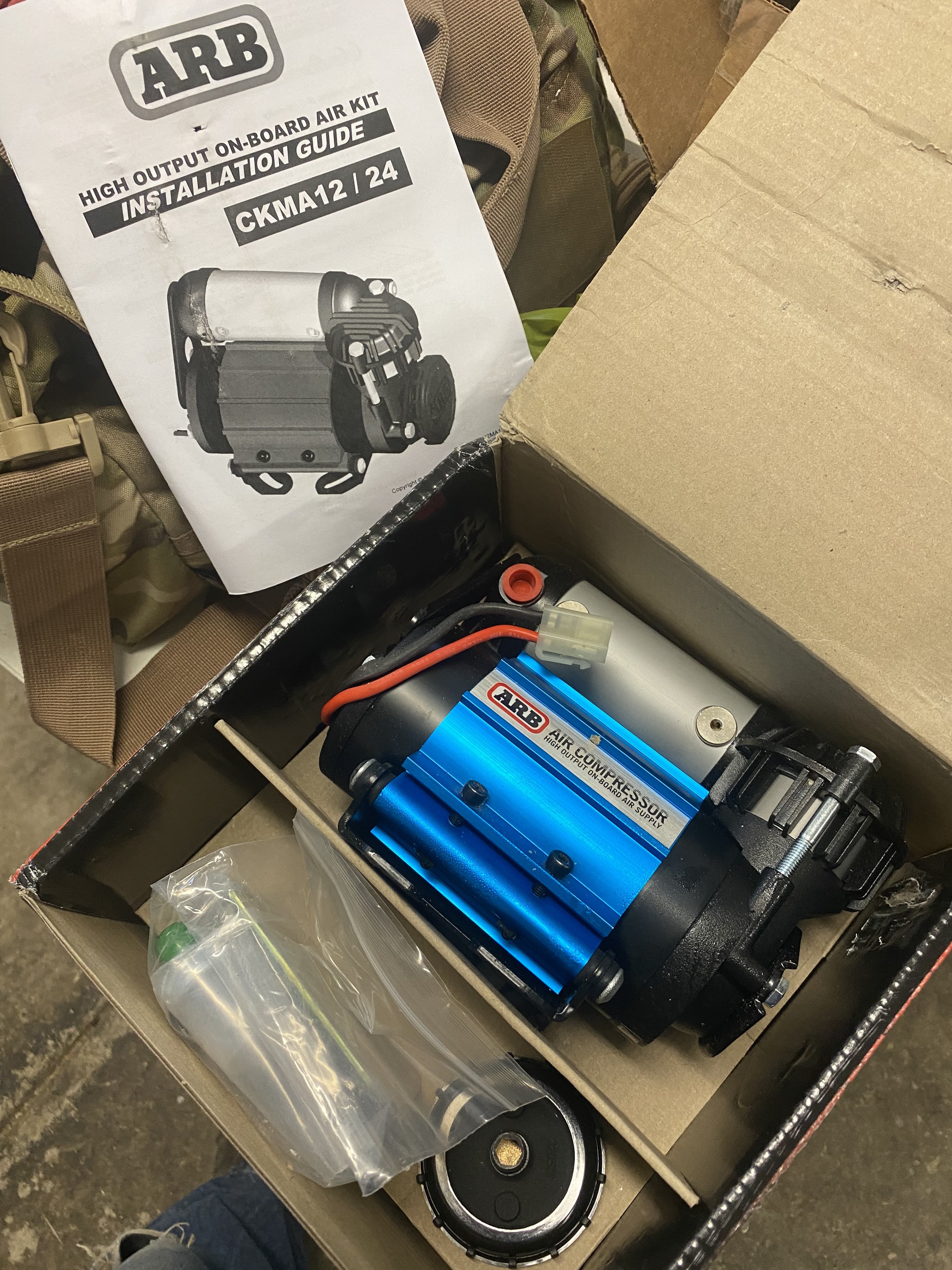

ARB single compressor that we’ll mount between the coolant overflow and airbox



[Vdawg1115]

Ballistic Fab shock towers are tacked and coilover is test fitted



[Vdawg1115]

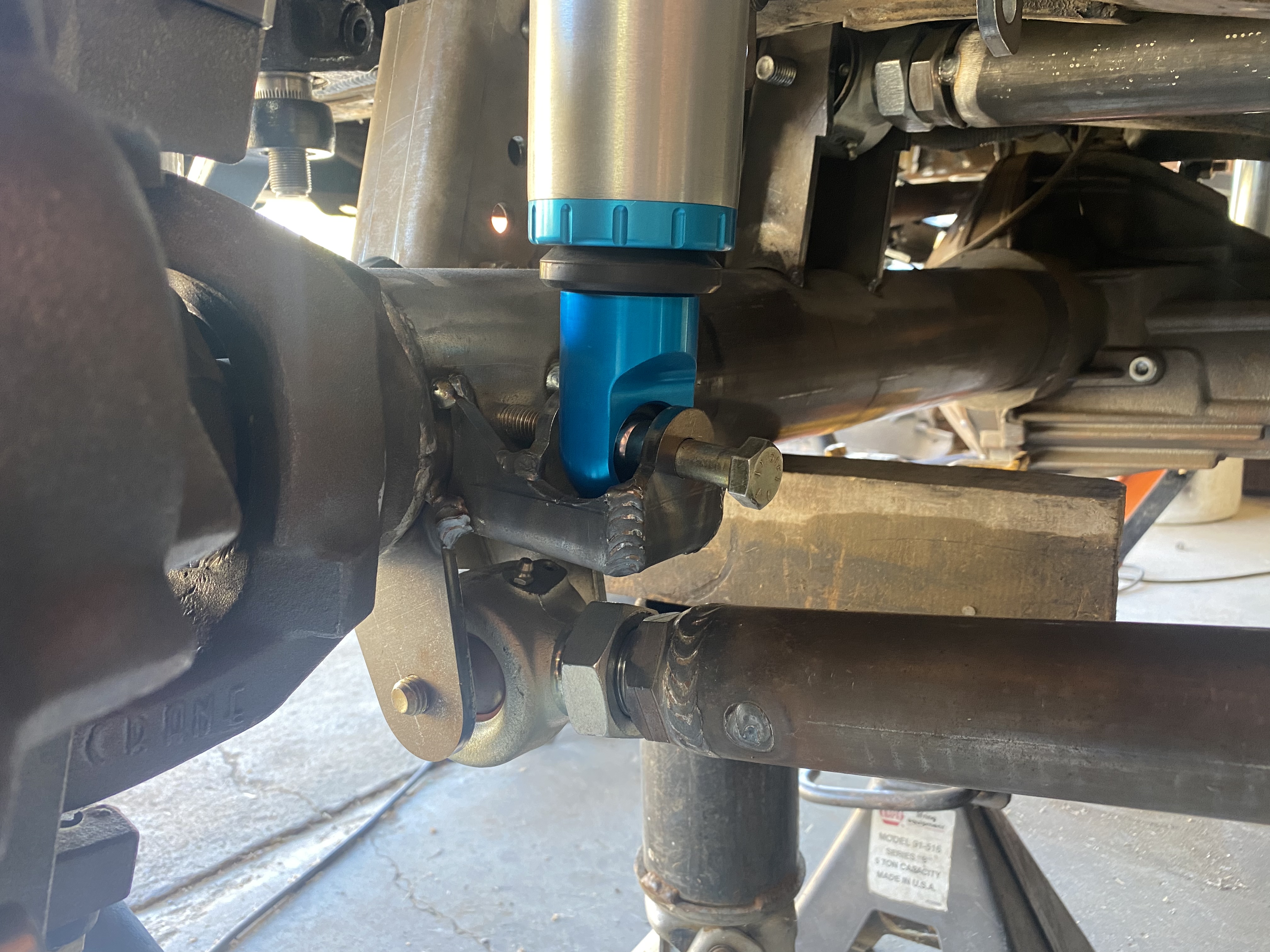

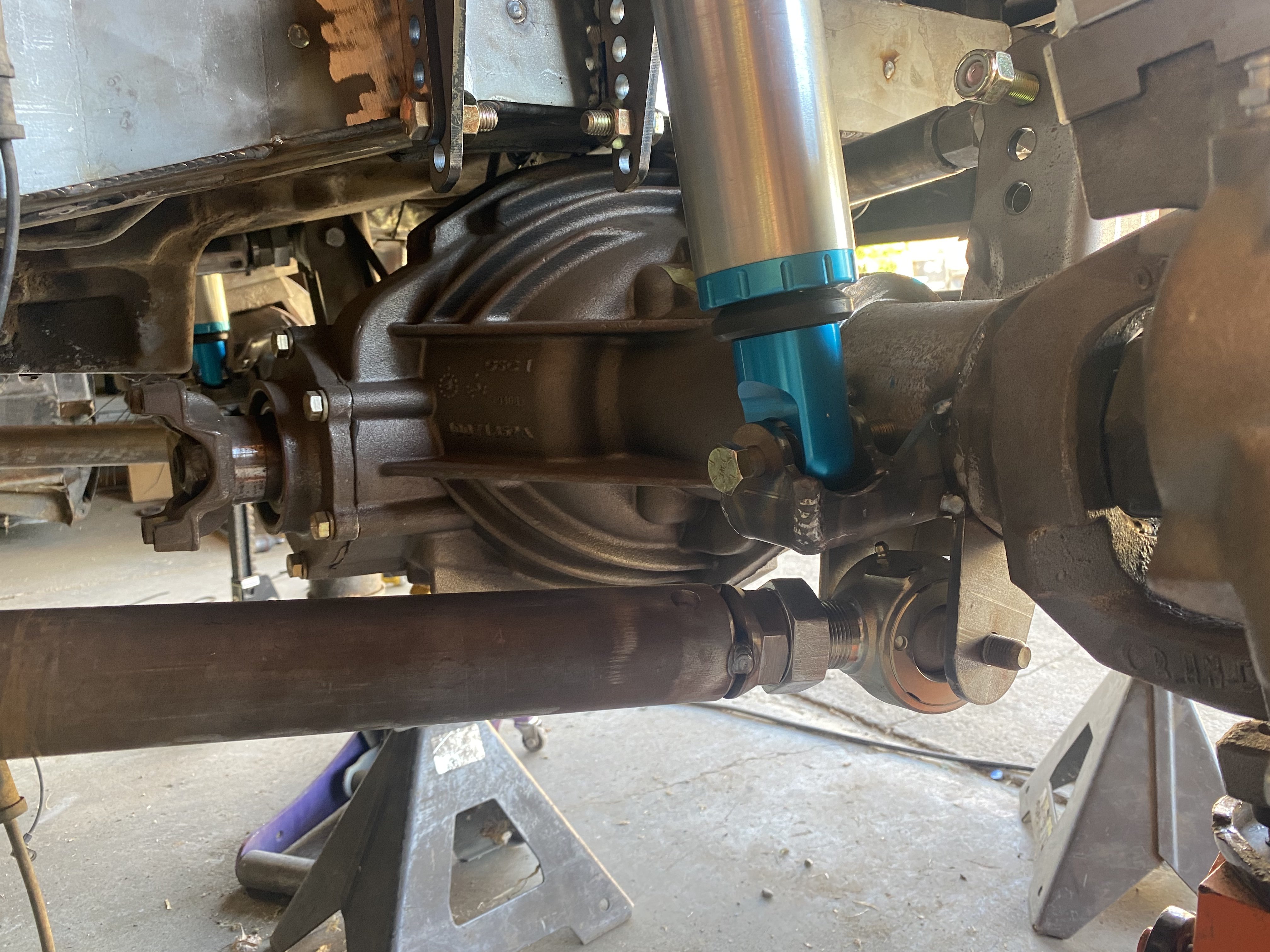

Lower shock mount on the drivers side. Sits right above the lower link mount



[Vdawg1115]

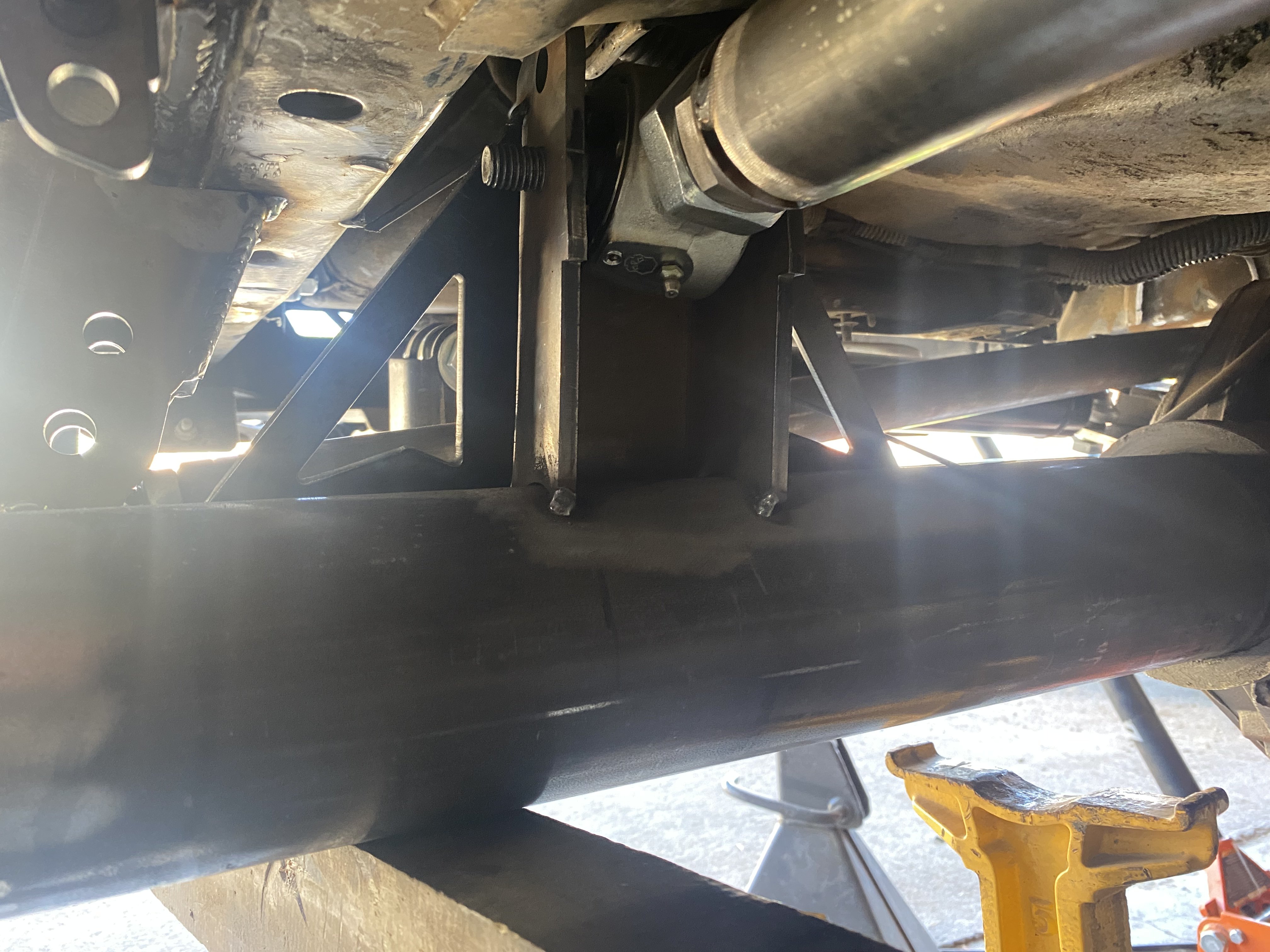

Upper link mount on the axle. We added triangle gussets



[Vdawg1115]

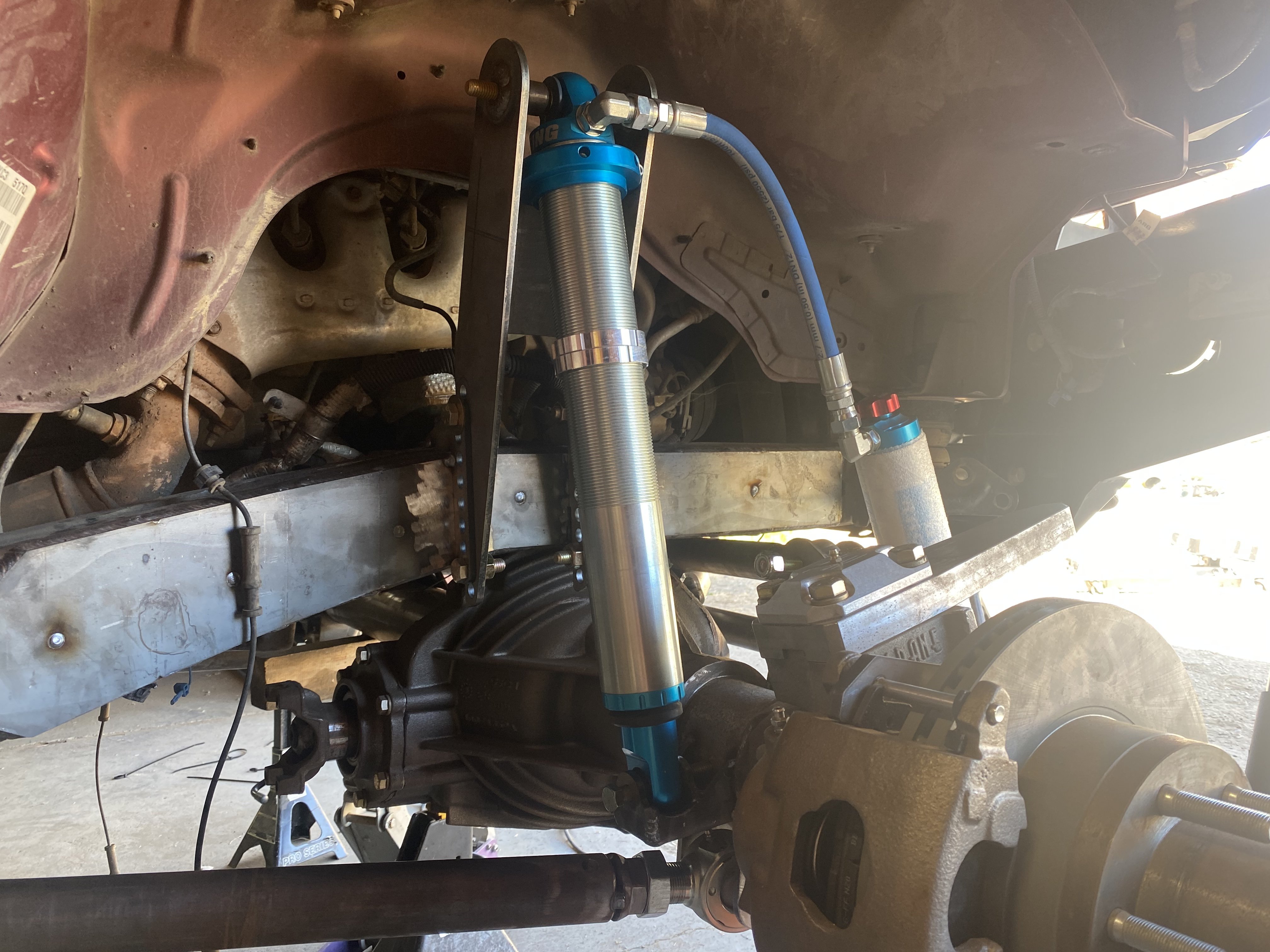

Ram assist unit test fitted. Made a mount that goes on the diff cover.



[Vdawg1115]

Passenger side lower coilover mount. Right above the link mount



[Vdawg1115]



[Vdawg1115]

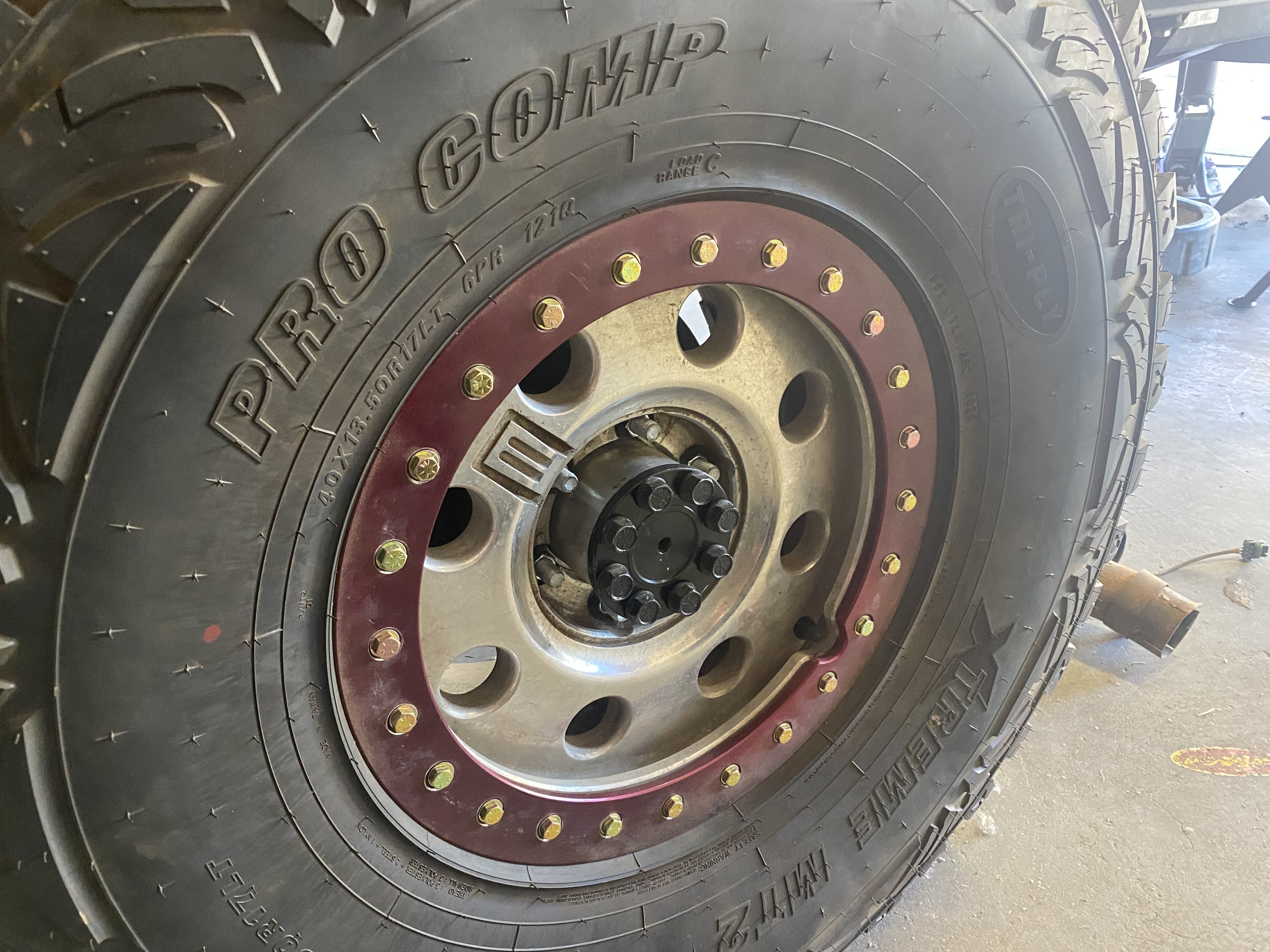

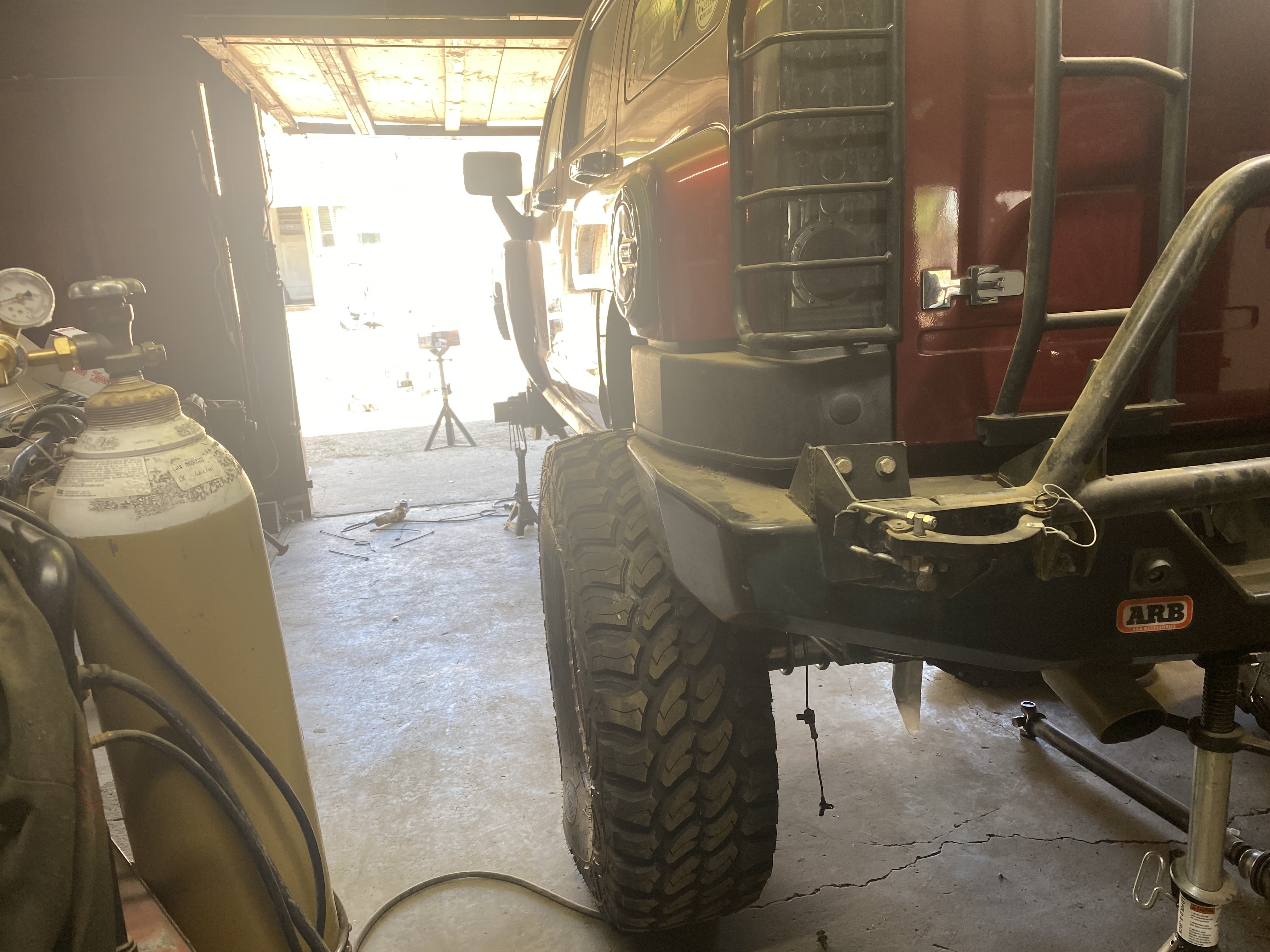

Rear wheels and tires on so we can make necessary height adjustments



[Vdawg1115]

Picked up a pressure switch for the airbags. Have them tacked in place. Looks good



[Vdawg1115]

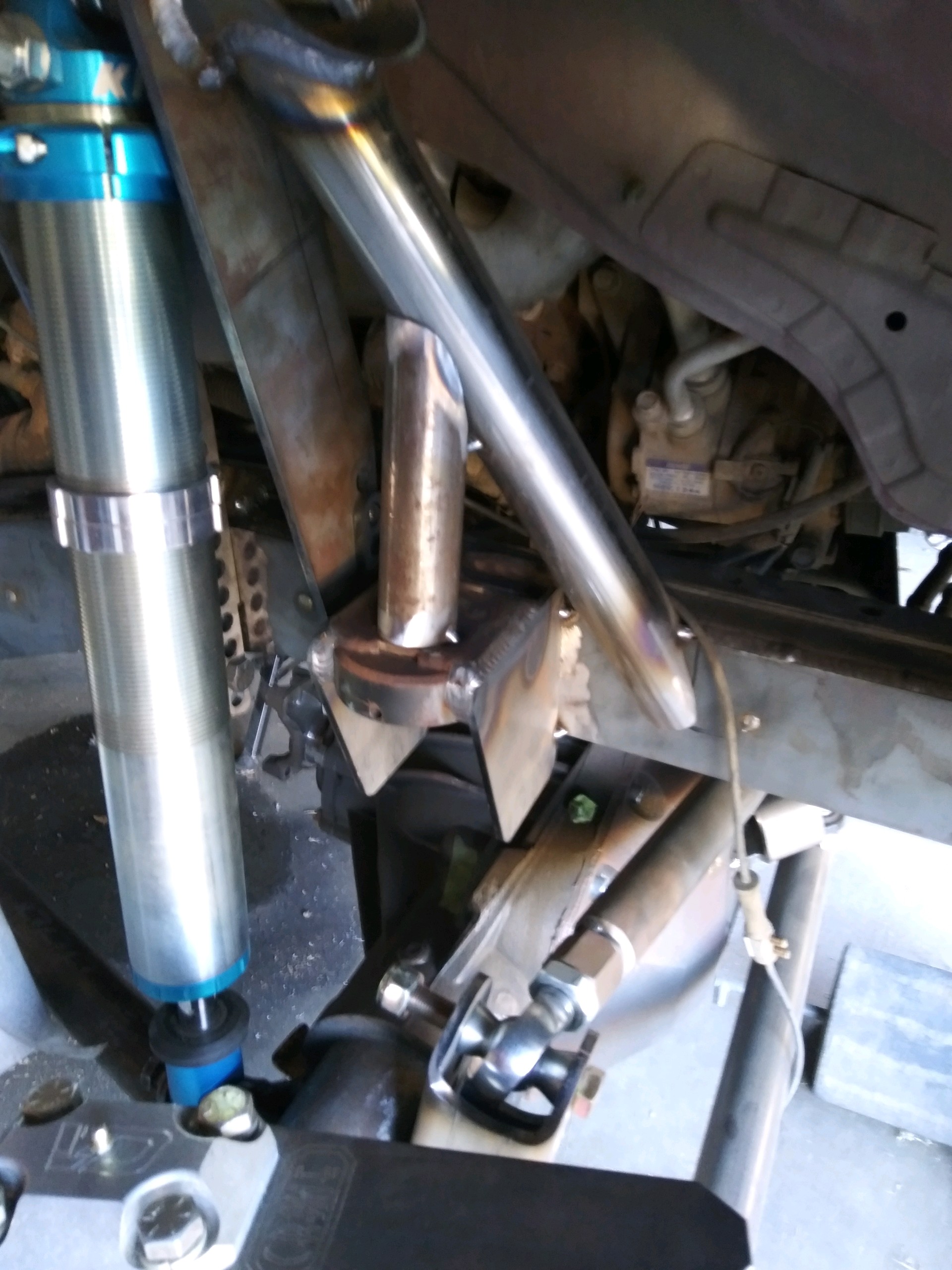

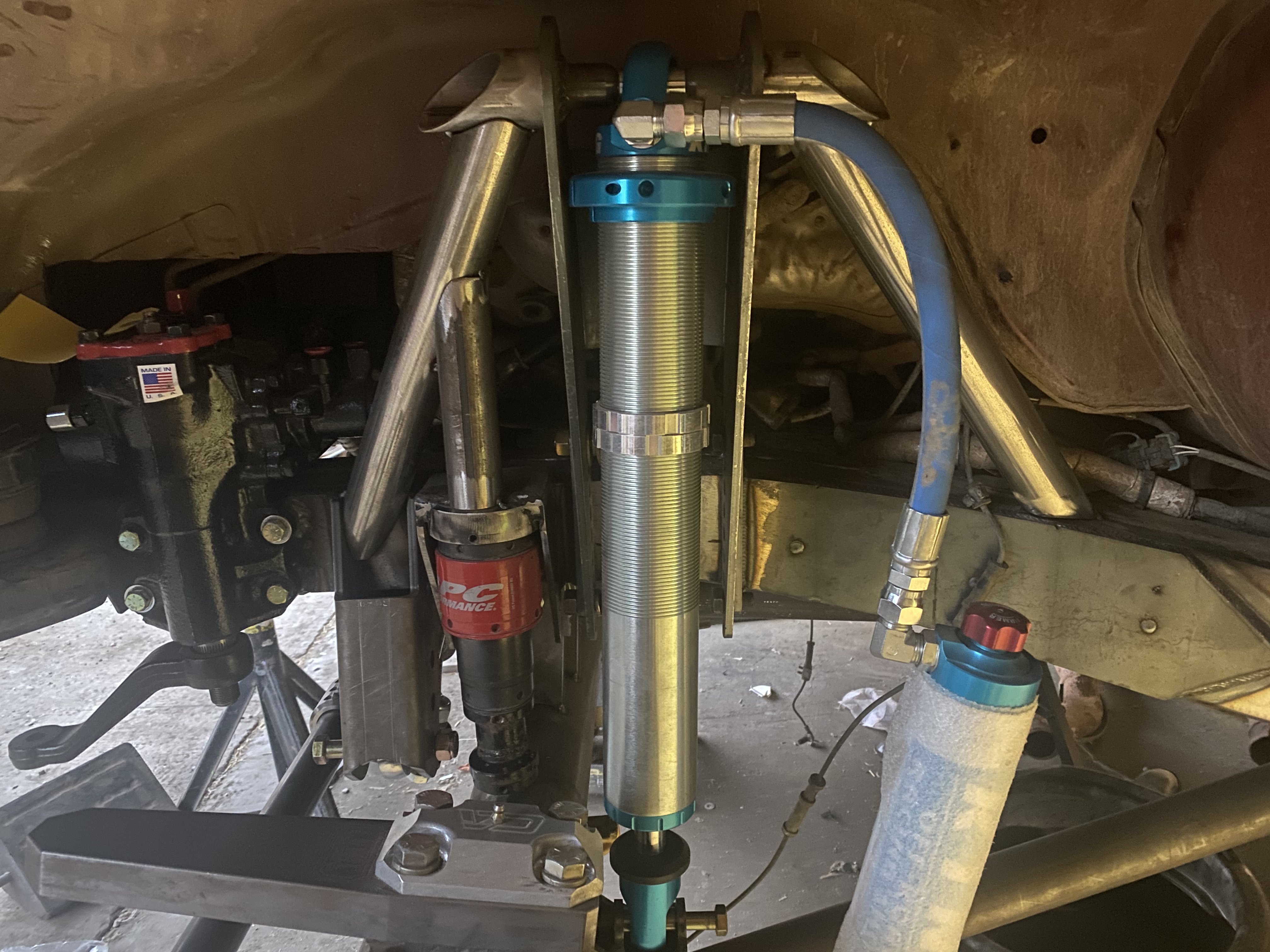

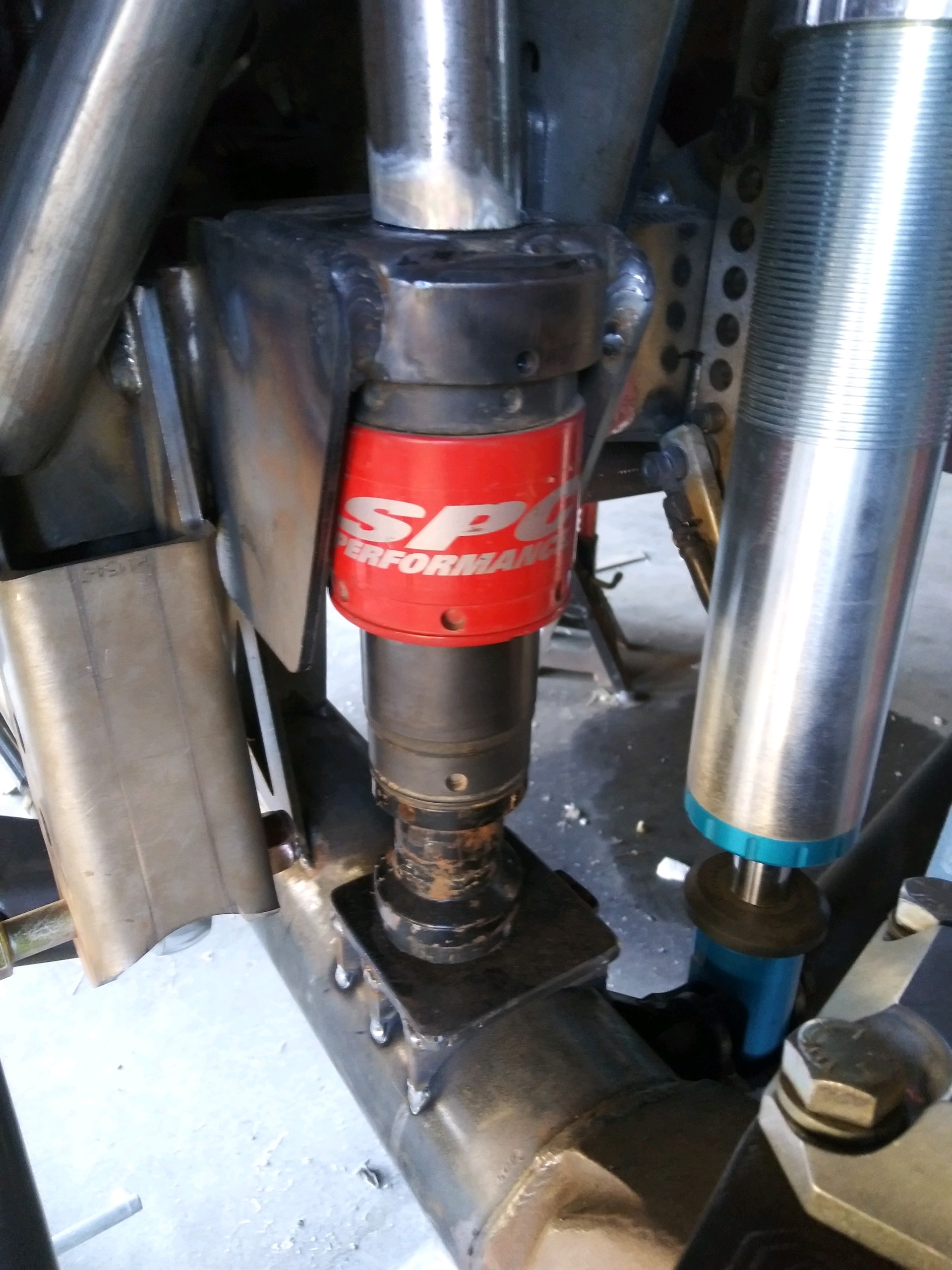

Reinforcement tubes welded to the shock towers. Reusing my SPC Light Racing Jounce shocks. Reinforcement ties into the bracket for those also



[Vdawg1115]

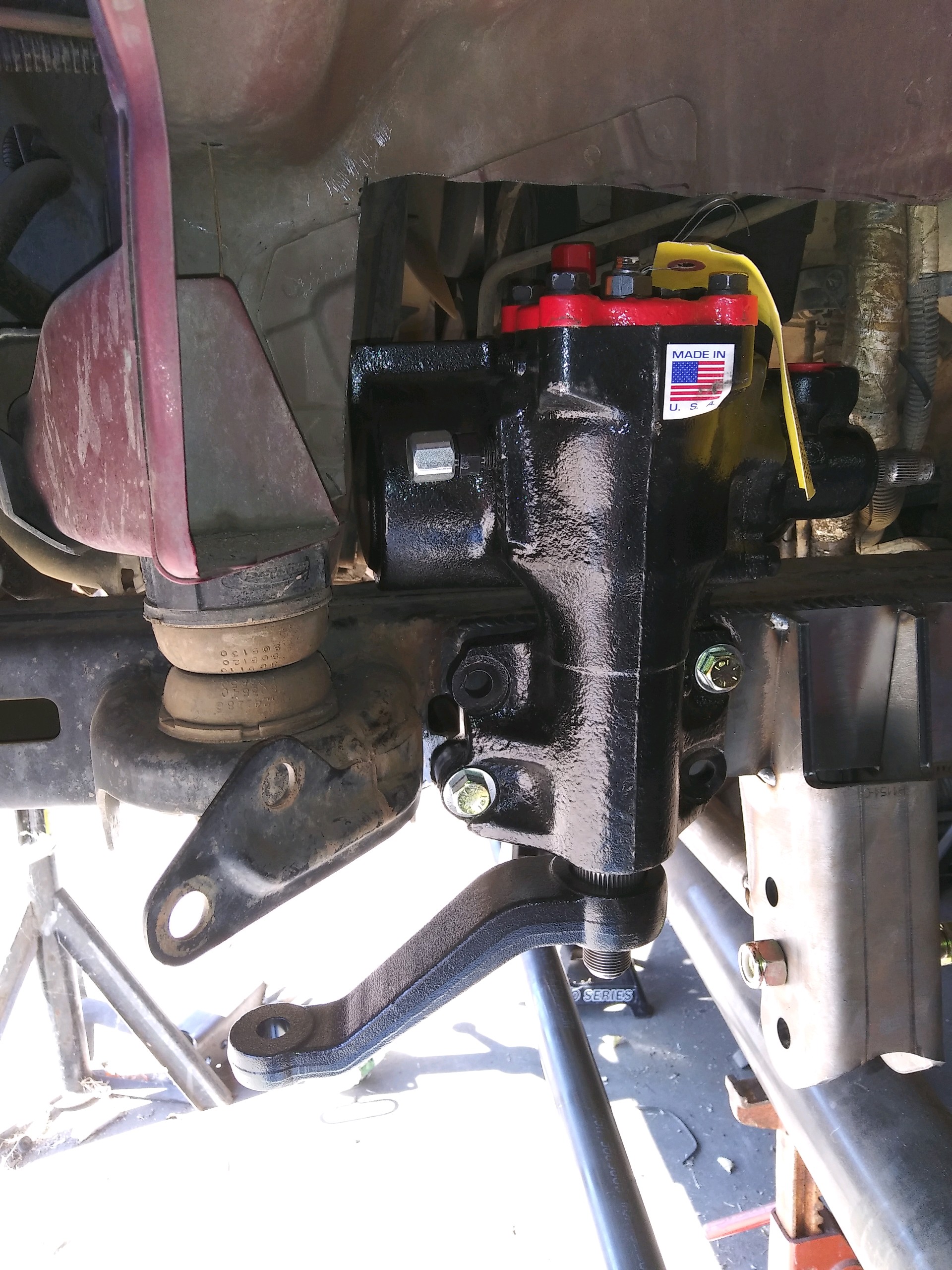

Steering column attached to the steering box



[Vdawg1115]

Drivers side shock towers fully welded and reinforced



[Vdawg1115]

Getting the passenger side towers ready to be welded in



[Vdawg1115]

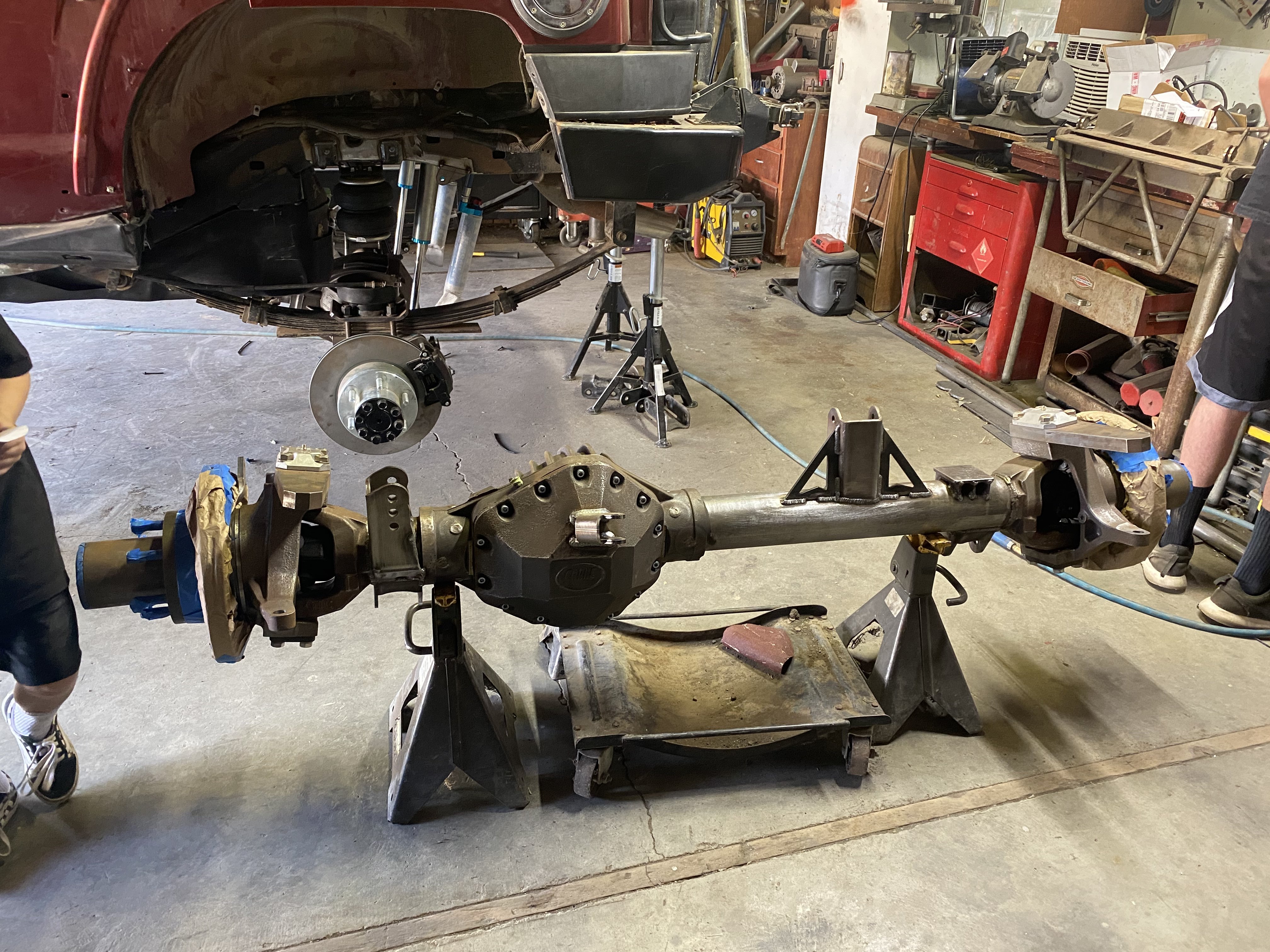

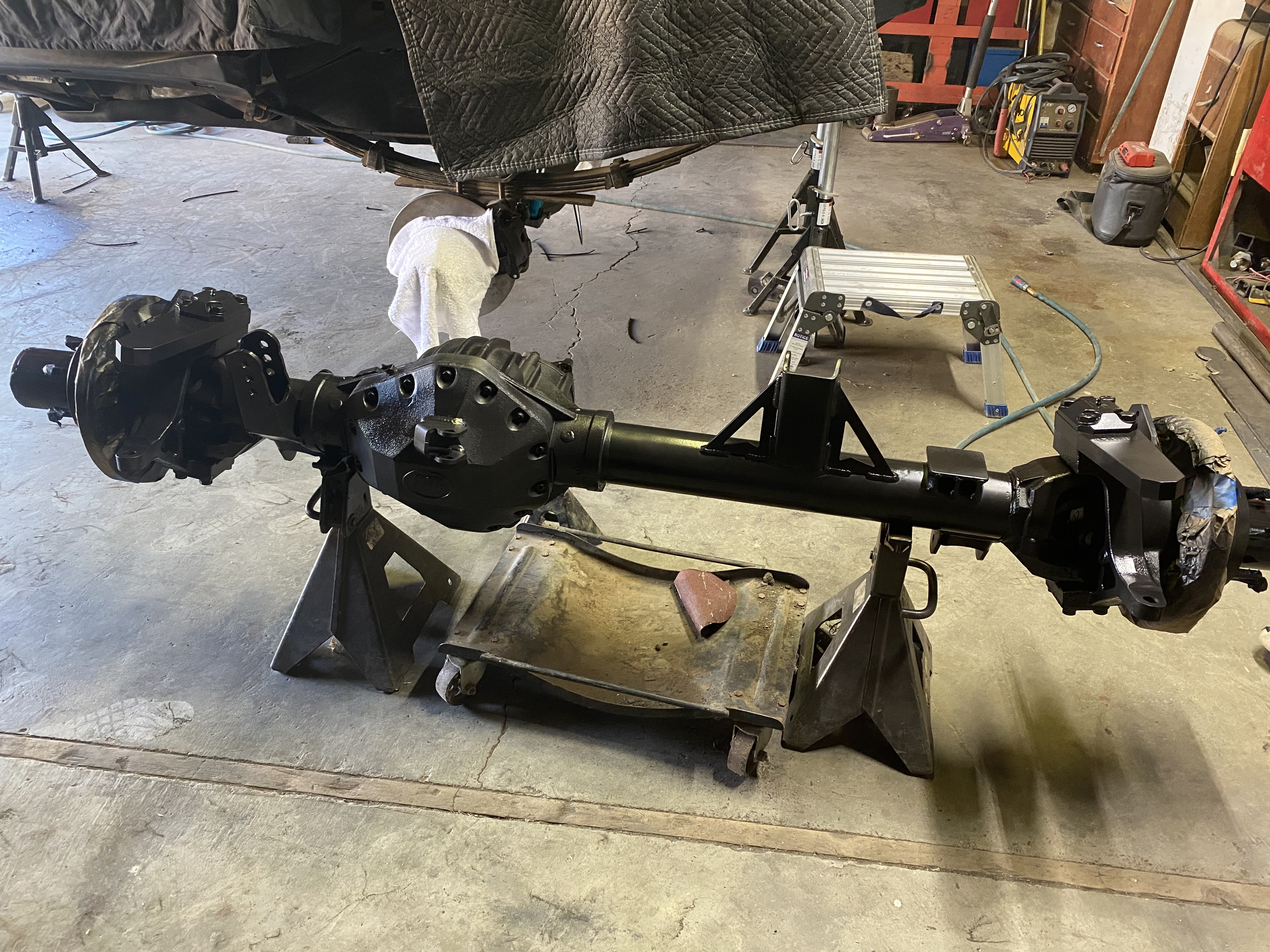

Front axle prepped and painted with Steel-It coatings
