h3 2006 blower motor

[h3newbbie]

I was going down the road and the blower motor stop kept driving and it tried to come back on a couple of times the all at once it started back up i turned it off and on a few times it is working fine right now anyone have a idea what it could be dont want to get stuck with no heat when its 32 degrees like it is today



[poncho1965]

The resister and wiring harness get hot and melt. I've repaired this several times myself. Except I did without A/C in 115 degree weather. Can replace these parts but it will happen again. I soldered the connections so it won't happen anymore


Mike



[Zach]

X2 what Mike said. Very common problem is the resistor and burns the connector



[h3newbbie]

thanks for the help guys is there a thread that shows a fix for it



[jwilson]

I thought I would add to this after my experience with this problem over the weekend.

Here is the location under the glove box

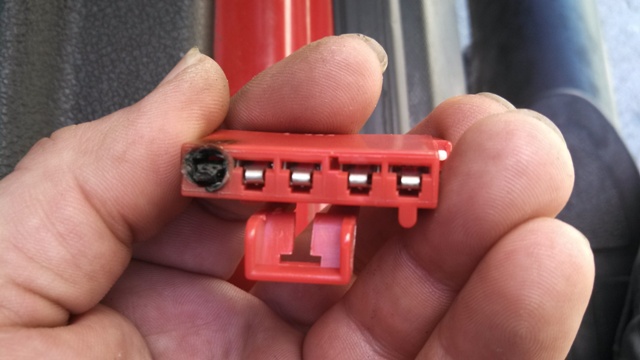

Here is the connector - melted and burnt out on one leg

Tools needed

Ready to crimp

Blower motor is back in business.

JW



[ZWilson07]

Awesome thread to keep in mind.

Thanks guys
