Name that Leak!

MuDnYrI

Well-Known Member
Messages
225
Location
Las Vegas
HUMMER H2

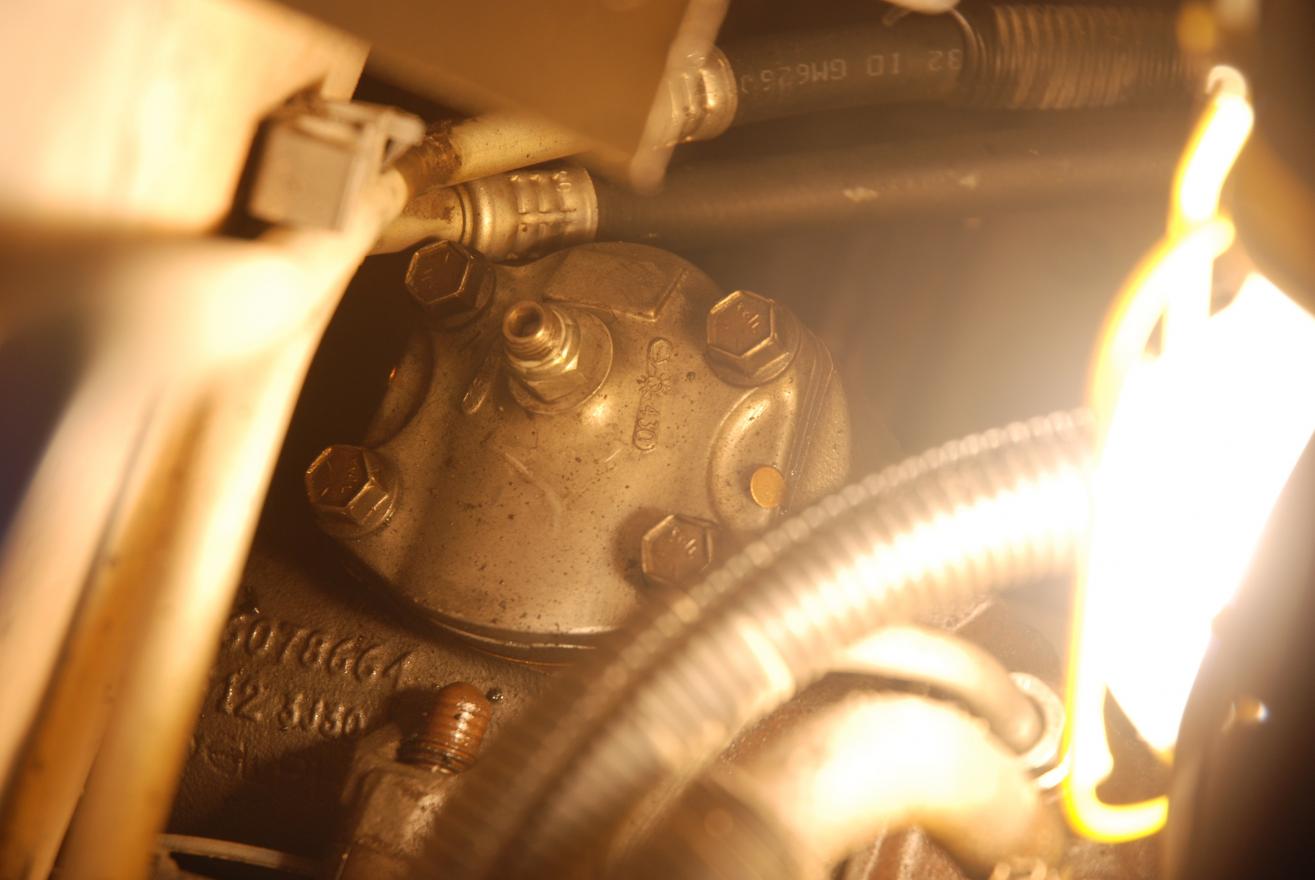

OK… I start up the H2 step on the brake, turn the wheel and start to back out of my Driveway. Next I hear terrible screeching sound so I pull back up the Driveway and start to look for clues. The 1st clue … a big puddle of PS fluid!! OK I pop open the Hood and see the leak (see below picture) It looks like there is a gasket under the 4 screws shown in the picture.
So my questions are what is it and will tightening the bolts down possible fix ... maybe a new gasket??
TIA


Attachments

  • DSC_2388.jpg
    81.8 KB · Views: 486

Zach

Mall Crawler
Messages
4,812
Location
So Cal
There is an upper seal kit that is serviceable. It isn't that expensive of a fix


[__--MUD--__]

Well-Known Member
Messages
125
Location
South West Michigan
Thats what applies the hydraulic power steering to the steering gear box which turns your wheels. There is a gasket there. also #18 is a check valve. Suprised that blew. Was there anything binding up/preventing your front wheels from turning?



MuDnYrI

Well-Known Member
Messages
225
Location
Las Vegas
Thanks for the info guys!
MUD, nothing preventing my front wheels from turning that I am aware of. I did do some light wheeling recently and may or may not have climbed to the top of a rather large boulder
Maybe I blew it then?
Also, what did you mean when you said:
also #18 is a check valve. Suprised that blew.
Can you tell from the picture that something blew?
