Canadian h3t Alpha build

[Bigunit]

RamRod, that's one long 4-5 day date night!

Sent from my XT1080 using Tapataint



[RamRod]

RamRod, that's one long 4-5 day date night!

Sent from my XT1080 using Tapataint

Ha! What can I say

So I got all the wires run from the winch to the solenoid, got the solenoid mounted up under the hood..... Then on my last electrical connection on the winch I over tightened the connection and BAM!

I sheared the bolt right off.... Face palm

So I pulled the winch out and took it back to the store I bought it from, they have the best return policy ever, got it switched out for a new one. And now I have to bolt it up and start over again



[RamRod]

Took the T out on a weekend wheelin' trip last weekend and I'll be sure to post up some pic's once I get them, but I did wreck/wear out a few parts and now have some upgraded parts on order to fix
Brake pads-Replacing on all four corners, Driver rear started making some grinding sounds on the trip out to the trail head (350km one way)..... metal on metal, hope I don't need new rotors!

Inner Tie Rod- ordered the Outfitter Designs kit to upgrade both inner tie rods & both outter tie rods... my theory is that I am putting much more added stress on the system with the lift and 37's and I am going to wear all of these parts out over time, so I might as well upgrade and pay for the cost upfront rather then wear them out one by one and pay more over time.

So I got two updates and a trail run to report on soon!



[azeeez221]

Nice work you did , the rear quarter cover is awesome



[RamRod]

I started to make some improvement/modifications to my home made roof rack, prepping it for the final version which will be coated in Raptor Liner.

I also picked up picked up my new beefed up tie rods from the post office today, I plan to get those installed tonight! (and an alignment over the weekend).

I'll post my thought about them after I get a chance to abuse them a bit



[RamRod]

So after adding all the new front end parts and winch to the truck iI got my T bars cranked to bring me back to the right ride height... Got an alignment done... Now I see that my Rancho rear leaves have sagged even after adding a leaf! I am now measuring 25"... I imagine if I didn't do the AAL I would be back to stock height

I assume this happened after a two day trail run that had a good 20km's of higher speed wheelin' over a dried up river bed

So SOA is the way to go... I won't fix these leafs... I'll go straight to SOA in the fall


Sent from handheld smoke signal device



[RamRod]

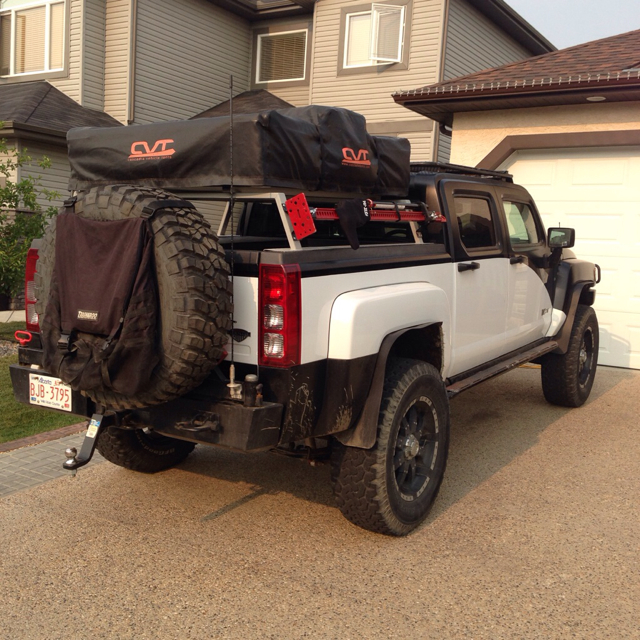

Lots of change has been happening, but haven't been taking many pics.. here are some that I do have:

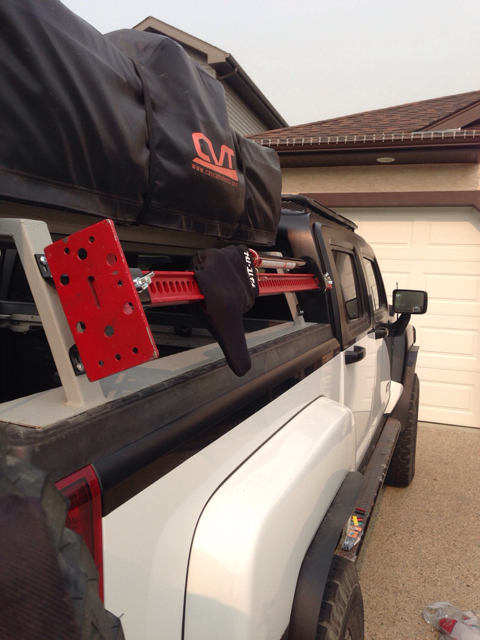

New Hi-lift mount:

Some wheelin' shots on a trip out to Ruby Falls, Alberta:



[Chocflip201]

My favorite H3T by a good margin. Sweet pics!



[RamRod]

So trip pics to provide an update on how the Hummer is doing

Got loads of ideas on how to improve the T for next big trip!


Sent from handheld smoke signal device



[Peep]

Keep the pic's coming!

lov it



[RamRod]

little clue for whats to come:

I just placed and order for some fancy bits that will allow me to run single digit pressures when airing down! So stoked!!



[SuperBuickGuy]

very cool



[RamRod]

Here are the new (to me) shoes coming for the Orca

Sent from handheld smoke signal device



[RamRod]

I also started working on a new OBA system and here is a sneak peak at what that looks like so far:

Tank, with cut off switch, regulator and dump valve.... I think I'm going to ditch the regulator for a manifold since the cut off is at 100 PSI anyways.

Going to try band pick up the compressor I have picked out, but if it's not in store then I will have to order and wait a few days



Sent from handheld smoke signal device



[Bigunit]

Here are the new (to me) shoes coming for the Orca

Sent from handheld smoke signal device

Sweet wheels. The Orca will be ready for anything after those go on! Very nice.



[RamRod]

Just got the tracking number for the Hutchinsons, I'll be picking them up next week I hope (shipped to near the border in MT then I'll take them across and save on all the boarder fees.... It's still 3 hours each way though :S)

Took off the "long john" fender flares because one got really chewed up on our road trip and I felt that they de-clawed the T's stance

In my excitement about the new beadlocks I felt like doing some dipping on my T to get rid of some chrome... I tried both black and orange (which I had sitting on the shelf) here is what they looked like:

I am sure you can guess which color I chose to paint the other three caps....



[RamRod]

Over the weekend I spayed Raptor liner on my Sliders, turn out real good! I won't be using the aerosol variety any more now that I have discovered this stuff!
Here is what came in my kit:

All I needed to add was the color of tint of my choice and a sure line fitting that would match up to the air hose
The end result turned out like this:

It is much more "grippy" and resembles the commercial stuff way more then the duplicolor product


Sent from handheld smoke signal device



[benlaud87]

I have read many good reviews and heard of numerous positive experiences with raptor liner and other 2 part bed liners. I don't feel like the aerosol bed liners are worth a crap other than just painting some trim. I couldn't imagine someone actually using something like that in their truck bed.



[RamRod]

Still waiting on hardware from Hutchinson, hope they come soon, then I believe I will be ordering some 37x12.5r16's Trxus M/T's.

I also installed an ARB OBA air set up in the box under the snug top

That setup is only temporary until I get my 2 gallon tank installed and it will get all re-worked and plumed in

Starting to plan my SOA, thinking I'm going to put in some air bumps at the same time, but still want to do more reading before I commit to that just yet.

Tomorrow night I will be heading over to a local club meet and someone is bringing a 20* ramp so I can score my flex before and after the SOA



[RamRod]

Scored a 244 on the ramp


Sent from handheld smoke signal device



[derian06]

Well ****



[Hummerboy]

All this flex talk is killing me. I thought hummer was known for the bad a** IFS yes they got it from the h1 who has fully independent suspension but the principle is the same if we wanted insane flex should a bought a jeep that being said IMO flex IS overrated... Does it hurt to have no but man I could care less about "flexing" that's a jeep thing and no I don't understand.



[derian06]

A stock H3 has a score of 447 your score must be wrong somehow.



[Panzer07]

I taught it was stablished quite some time ago "HUMMERS DON'T FLEX, THEY BALANCE" lol
I have had my experience with the military HMMWV once or twice and they don't flex any more than hour gunners do.


Torres



[RamRod]

A stock H3 has a score of 447 your score must be wrong somehow.

Hmm it must have something to do with the wheel base.

If I use the stock h3 score of 447, that means it went up a 20* ramp 50 inches.

Assuming I could go the same distance if I factor in my wheel base of 132.4" I get a score of 372.5.

I think the guys told me to stop after a wheel spin a bit, not when I was at the point of a wheel lifting, thus the lower score


But like you guys said the RTI isn't what it's cracked up to be


Sent from handheld smoke signal device
